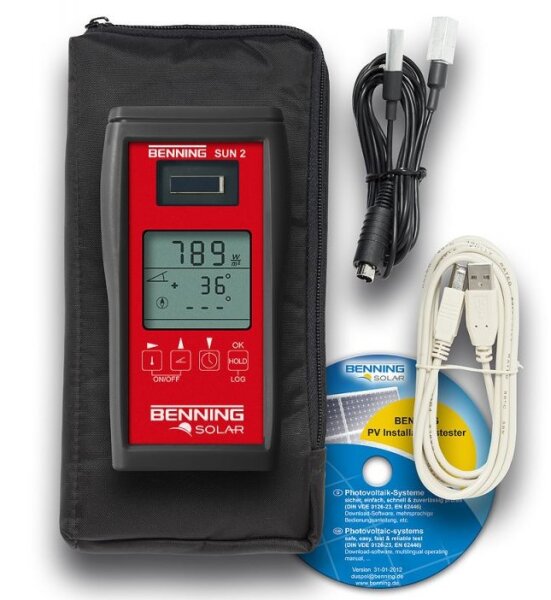

Description
Measurement functions:
- Solar irradiation measurement in W/m² or BTU/h/ft²
- 2-channel temperature sensor for measuring the module and ambient temperature
- Digital compass to determine the compass direction
- Inclinometer for determining the roof/module inclination
Performance features:
- Universal 4-in-1 measuring device for all testing and maintenance work as well as for checking the efficiency of PV systems and solar thermal systems
- Calibrated photovoltaic reference cell for precise measurement of solar irradiation (irradiance)
- Accurate and reproducible temperature measurement via precision sensors
- Data logger function with adjustable sampling rate (1 min. to 60 min.) for storing 5,000 data records, consisting of irradiance, module/ambient temperature and date/time stamp
- Integrated real-time clock
- Wireless connection (WirelessSunLink, approx. 30 m range outdoors) to PV installation tester BENNING PV 1-1+ (05042101)
- USB interface and download software for test report generation in MS Excel®
- HOLD function for display storage
- Automatic switch-off after 2 minutes
- Power-saving standby mode in data logger mode
- Handy and robust housing design
Technical data
|
Display |
Graphic display |
|
Solar irradiation |
|
|
Measuring range |
100 - 1250 Wm² or 30 - 400 BTU/h/ft² |
|
Resolution/accuracy |
1 Wm² or 1 BTU/h/ft² / ± (5%+5 digit) |
|
Temperature (module/environment) |
|
|
Measuring ranges |
-30°C - +125°C |
|
Resolution/accuracy |
1° / ± 2° |
|
Inclinometer |
|
|
Measuring range |
0° - 80° |
|
Resolution / Accuracy |
1° / ± 2° |
|
Dimensions (L x W x H) |
150 x 80 x 33 mm |
|
Weight |
265 g |
|
Battery configuration |
2x batteries 1.5V type AA, IEC LR 6 |
|
Real-time clock |
Date/time stamp |
|
Measured value memory |
5.000 Displays |
|
Display interface |
USB |
|
Download software |
on CD-ROM |
