Description

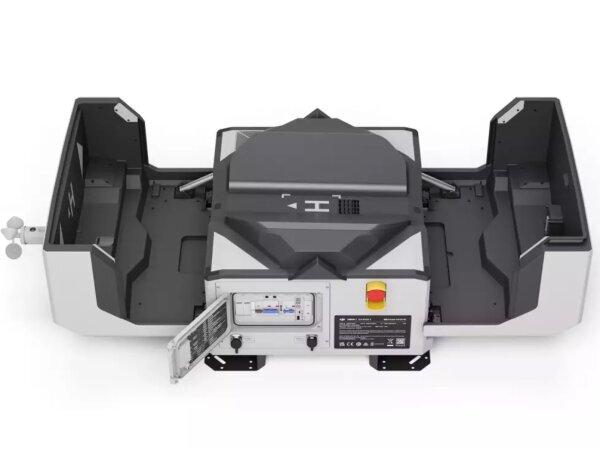

The DJI Dock 2 is the perfect support for the use of DJI Matrice 3D or Matrice 3TD drones. With its intelligent functions, cloud-based services and particularly compact design, it increases the flexibility of your missions. The smaller, lighter design also makes it easier to transport, so you can reduce costs and effort without sacrificing safety and efficiency.
Flexibility and easy operation
Thanks to its slim design, the DJI Dock 2 is ideal for use in a wide variety of environments. It is easy to transport, immediately ready for use and impresses with its intuitive operation. With intelligent cloud-based functions, you can improve the quality and efficiency of your flight operations - ideal for demanding and unattended missions.
Advantages at a glance
- Compact size: 75 % smaller and 68 % lighter than the previous model
- Easy handling: Easy to transport and install
- Effective cloud services: Increased operational efficiency and quality
Robust and durable - for demanding applications
The DJI Dock 2 is built to last. With its robust design, it offers protection against dust and water (IP55 certification) and can work reliably in harsh environments. An integrated environmental monitoring system detects weather changes and ensures maximum safety during flight operations.
Important features
- Dust and waterproof: IP55 protection for use in challenging environments
- Integrated environmental monitoring system: Real-time weather monitoring for maximum safety
- Backup battery: In an emergency, up to 5 hours of operation without an external power source
Precise location assessment and stable operation
Before use, the DJI Dock 2 uses image sensors to assess the environment and recognise whether sufficient GNSS signals are available. This greatly speeds up location selection. In addition, the advanced image recognition technology ensures precise landings, even in difficult conditions.
Technical highlights
- Improved landing stability: Glide ramp and image processing for precise landings
- Efficient location assessment: Fast detection of strong GNSS signals in just a few minutes
Quickly ready for use and powerful
The DJI Dock 2 saves you valuable time. It performs automatic propeller checks and is ready for take-off within 45 seconds. The built-in fast-charging function brings your drone from 20 % to 90 % battery charge in just 32 minutes - perfect for missions that require quick follow-up launches.
Quick operational readiness
- Take-off in 45 seconds: Automatic propeller check and quick activation
- Efficient charging: Charging time of 32 minutes for continuous use
Intelligent cloud-based control
With the integration of DJI FlightHub 2, the DJI Dock 2 enables cloud-based control and monitoring of your drone flights. With features such as cloud mapping, flight route editor and AI spot check, your drone flights are more efficient and precise than ever before. Live flight controls and obstacle avoidance can also be easily performed via the cloud platform.
Cloud features at a glance
- Cloud mapping: Create 3D models for precise flight data analysis
- Flight route editor: Simple planning and simulation of flight routes
- AI spot check: Automated synchronisation of recurring recordings for greater precision
- Live flight control: Direct control of flights via the cloud platform
Open ecosystem and flexible application options
The DJI Dock 2 offers you numerous options for customisation to meet specific requirements. It supports third-party payloads and can be integrated into existing cloud systems. In addition, the edge computing extension enables fast pre-processing of data, which further optimises operations.
Expandable functions
- Third-party payloads: Support for spotlights, speakers and more
- Edge computing: Efficient pre-processing of data for optimised workflows
- Cloud API: Integrate DJI Dock 2 with your cloud platform or third-party software
Scope of delivery
1x dock body (incl. earthing wire)
1x wind speed measurement module
4x extension bolts
1x Ethernet cable connector
1x mains cable connector
6x wire end ferrules
Screws and tools
Technical data
Total weight
34 kg (without aircraft)
The actual weight may vary due to different batch materials and external factors.
Dimensions
Dock cover open: 1228 × 583 × 412 mm (L × W × H)
Dock cover closed: 570 × 583 × 465 mm (L × W × H)
The above data does not include the height of the anemometer (145 mm), but the height of the mounting base brackets (55 mm).
Input voltage
100 to 240 V (AC), 50/60 Hz
Input power
Max. 1000 W
Operating temperature
-25 to 45 °C (-13 to 113 °F)
If the ambient temperature is below -20 °C (-4 °F), the dock is in standby status and the aircraft cannot perform any flight tasks.
Protection class
IP55
Max. Max. number of supported drones
1
Max. permissible wind speed on landing
8 m/s
Maximum altitude for operation
4000 m
Satellite frequencies of the RTK base station
Simultaneous reception:
GPS: L1 C/A, L2
ForDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5b
Position accuracy of the RTK base station
Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Dock - charging power
Output voltage
28 V DC
Charging time
32 minutes
The data was measured when charging the aircraft (when switched off) from 20 % to 90 % in a 25 °C environment.
Dock - Video transmission
Video transmission system
O3 Enterprise
Operating frequency
2.4000 to 2.4835 GHz
5.725 to 5.850 GHz
Antenna
4 antennas integrated, 2 transmitters, 4 receivers, supports intelligent switching
Radiated power (EIRP)
2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC)
5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC)
Dock - air conditioning
Operating voltage
28 V DC
Type
TEC air conditioning system
Dock - reserve battery
Battery capacity
12 Ah
Output voltage
12 V
Battery type
Lead-acid battery
Battery life
> 5 hours
Measured with fully charged spare battery at 25 °C. after a power failure, the dock does not support functions such as charging of flying devices, air conditioning, heating of the cover and wind speed display. always check malfunctions immediately.
Dock - network access
Ethernet
Adaptive Ethernet connection with 10/100/1000 MBit/s
Dock - Sensor
Wind speed sensor
Supported
Rain sensor
Supported
Ambient temperature sensor
Supported
Water immersion sensor
Supported
Indoor temperature sensor
Supported
Indoor humidity sensor
Supported
Dock - security camera (external)
Resolution
1920×1080
Field of view (FOV)
151°
Auxiliary lighting
White auxiliary light
Dock - security camera (internal)
Resolution
1920×1080
Field of view (FOV)
151°
Auxiliary lighting
White auxiliary light
Dock - flash protection
Power connection (AC)
20 kA (nominal value), fulfils the protection level requirements according to EN 61643-11 type 2 and IEC 61643-1 class Ⅱ.
Ethernet connection
10 kA (Itotal), fulfils protection class EN/IEC 61643-21 CATEGORY C
Dock - Supported software
Applications
DJI Pilot 2 (connection to DJI Dock 2 via DJI RC Pro Enterprise for deployment and commissioning)
Cloud platform
DJI FlightHub 2 (supported by default)
Third-party cloud platforms (access via DJI Cloud API)
Dock - expandability
Open protocol
DJI Cloud API
Edge computing
Supports data communication with external switches
FAQ
What are the important features of the matching flight models?
The DJI Matrice 3D/3TD was specially developed for the DJI Dock 2. The Matrice 3D is equipped with both a telephoto camera and a wide-angle camera with mechanical shutter and fulfils the requirements for high-precision mapping tasks at a scale of 1:500. The Matrice 3TD, which is equipped with a wide-angle camera, a telephoto camera and an infrared camera, can image both visible light and thermal images and is therefore suitable for security and inspection tasks.
The DJI Matrice 3D/3TD fulfils the requirements of high-standard operations thanks to its powerful operating capabilities.
- Dustproof and waterproof thanks to IP54
- 50 minutes maximum flight time
- 6-direction obstacle detection system
- 10 km max. effective operating radius
- 400 battery cycles
- Integrated RTK module for ±3cm positioning accuracy
What is the AI spot check function?
With the AI spot check function, defined areas in the 3D model can be checked automatically. The drone actively adjusts the camera angle to accurately capture the same area in subsequent missions to deliver repeatable results.
What does FlyTo task mean in DJI FlightHub 2?
FlyTo tasks automatically plan the optimal flight route based on the high-precision 3D models. One click on the target object is all it takes for the aircraft to fly there efficiently and safely.
What are the advantages of Edge Computing and the E-Port?
The DJI Dock 2 has an edge computing extension that enables pre-processing of media files, increasing operational efficiency. third-party payloads, such as speakers or parachutes, can be connected via the E-Port and controlled via the DJI FlightHub 2.
