Description

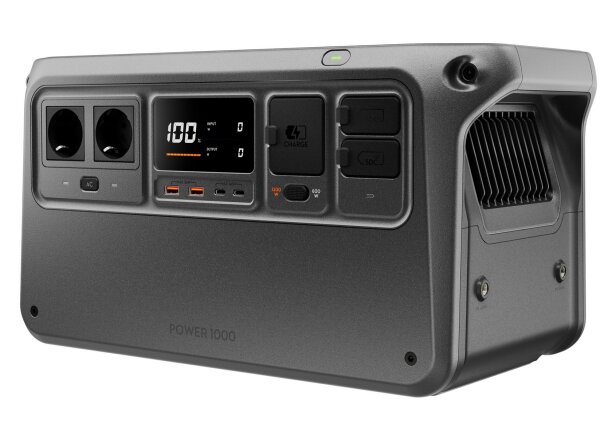

The portable DJI Power 1000 has a battery capacity of 1024 Wh and delivers a maximum AC output power of 2200 W. It can also quickly charge DJI drone batteries to unleash your creative aviation potential.
Product highlights
- Fast charging for DJI drones - DJI Power SDC for super-fast charging
- Fully charged in 70 minutes - Charged to 80 % in just 50 minutes
- Comprehensive safety concept - LFP cell with a service life of approx. 10 years
- Two USB-C ports (max. 140 W) and many other ports
- Output power of up to 2,200 W - Supplies over 99 % of all common household appliances with power
- Supports solar charging
- Extremely quiet operation
- Up to 5 years warranty
Fast charging for DJI drones
With the separately available charging cables, you can quickly charge selected DJI drone batteries with the super-fast DJI Power SDC charging function and get them in the air within about 30 minutes. With three drone batteries and a portable DJI Powerstation, you can enjoy a whole day of carefree flying fun and creativity.
- Mavic 3 Series Intelligent Flight Battery - Approx. 32 minutes battery level from 10 to 95 %
- DJI Air 3 Intelligent Flight Battery - Approx. 30 minutes battery level from 10 to 95 %
- Inspire 3 TB51 Intelligent Flight Battery - Approx. 28 minutes battery level from 10 to 95 %
- M30 TB30 Intelligent Flight Battery - Approx. 32 minutes battery level from 10 to 95 %
For camping and travelling
- Mobile phone - Approx. 57 operations
- Camping lamp - Approx. 32 operations
- Coffee machine - Approx. 55 minutes
- Projector - Approx. 9.2 hours
- Car refrigerator - Approx. 19 hours
- Electric fan - Approx. 9 hours
Content Creation
- Digital camera - Approx. 59 operations
- Laptop - Approx. 9 operations
- Drone - Approx. 12 processes
- Photography lighting system - Approx. 1.2 hours
- Loudspeaker - Approx. 64 operations
DIY
- Electric pneumatic hammer - Approx. 1.2 hours
- Electric chainsaw - Approx. 29 minutes
- Chainsaw - Approx. 40 minutes
Power reserve for at home
- WLAN router - Approx. 76.8 hours
- Fridge - Approx. 45 hours
- Lamp - Approx. 92 hours
- Rice cooker - Approx. 1.2 hours
- Juicer - Approx. 3.6 hours
- Microwave oven - Approx. 1.3 hours
Multiple charging options
The DJI Power 1000 can be charged in three ways: Mains power, solar power and car battery. Whether indoors or on the move - you can flexibly select the charging method that suits you best.
Mains power supply
Quickly and easily plug in, charge and go. When connected to the mains, the DJI Power 1000 supports both 1200W fast charging mode and 600W standard charging mode, with the fastest charging time being 70 minutes for 100% battery power. It can also be charged to 80 % in just 50 minutes.
Solar power
The DJI Power 1000 can be connected to solar panels via the DJI Power Adapter Module for Solar Panels (MPPT) or the DJI Power Car Socket to SDC Cable and charged with environmentally friendly solar power. MPPT (Maximum Power Point Tracking) is an intelligent algorithm that supports real-time monitoring of the voltage generated by connected solar panels. By tracking and maintaining the highest voltage and current values (V-I), the algorithm enables the solar panels to charge the DJI Power 1000 in an optimal and efficient way.
Solar panels of the DJI certified brand Zignes are recommended. The DJI Power 1000 supports a maximum solar power of 800 W and can be fully charged with solar energy in approximately 1.35 to 2.8 hours.
Vehicle battery
Easy charging on every journey. With the DJI Power car socket for SDC power cable (12 V/24 V), you can fully charge the DJI Power 1000 via the car charger.
Comprehensive safety concept, extremely quiet operation
Safety design
Safe and reliable, for indoors and outdoors
Safety always comes first. From the housing structure to the cell chemistry to the system software, the DJI Power 1000 has a comprehensive safety concept. It has passed 26 product tests by the Swiss testing centre SGS and thus guarantees safe electrical use.
Intelligent battery management system
If the safety limit value for power consumption is exceeded, the protection mechanism for the power supply and charging is automatically activated. As soon as the power supply returns to normal, the DJI Power 1000 will resume operation.
LFP cell
The LFP cell is safe and durable and can reach up to 3000 cycles, which is equivalent to a lifetime of about 10 years even with frequent use.
Certification by SGS Switzerland
Thanks to its comprehensive safety concept, the DJI Power 1000 has received 26 product test certifications from SGS Switzerland, including 2 product test verifications, 4 mechanical performance tests, 9 electrical performance tests, 3 environmental resistance tests, 5 noise level tests and 3 intelligent and efficient DC power supply and charging tests.
Safe and reliable power utilisation
11 temperature sensors
11 temperature sensors on the device continuously monitor heat dissipation and the power station functions normally even at temperatures of up to 40 °C.
Power failure protection
Ten fuses distributed across the Powerstation provide short-circuit protection for each module. Even in the event of a circuit failure, the DJI Power 1000 reacts quickly and safely.
High-strength structure
The Powerstation is made of flame-retardant material and can withstand a support weight of up to 100 kg, which also contributes to protection. Rendering and structure highlights
UPS mode, trouble-free power continuity
When an electrical device is connected to a switched-on DJI Power 1000 via the AC output and both are supplied with mains power, the DJI Power 1000 switches to UPS mode (uninterruptible power supply). In the event of a sudden power failure, the DJI Power 1000 can supply power to the connected device (or devices) within 0.02 seconds, ensuring uninterrupted operation.
Extremely quiet operation
The DJI Power 1000's noise level during charging is only 23 dB, lower than most household refrigerators, so there is no noise pollution even in quiet environments.
Numerous connections, extensive applications
The DJI Power 1000 features two 140W USB-C ports with a total output power of up to 280W, a 40% increase compared to the dual 100W USB-C outputs commonly found on the market, two USB-A ports, two AC outputs, one SDC port, one SDC Lite port and two 1/4″ threaded holes. It is extremely versatile and simplifies power utilisation in different scenarios. It can be connected to different types of solar panels, power cables and adapter cables to meet the needs of a variety of power supply and charging options.
Technical data
DJI Power 1000
Model
DYM1000L/DYM1000H
Power capacity
1024 Wh
Own weight
Approx. 13 kg
Dimensions
448 × 225 × 230 mm (L×W×H)
Number of connections
AC output × 2
USB-C × 2
USB-A × 2
SDC × 1
SDC Lite × 1
AC input × 1
Output data
AC output
DYM1000L: 100 to 120 V AC, 50/60 Hz, maximum continuous output power: 2200 W
DYM1000H: 220 to 240 V AC, 50/60 Hz, maximum continuous output power: 2200 W
The maximum continuous output power is available when the battery level of the product is above 20 %. The data for the AC output varies depending on the country and region.
AC output (bypass mode)
DYM1000L: 100 to 120 V AC, 12 A, 1440 W
dYM1000H: 220 to 240 V AC, 10 A, 2200 W
USB-A output
5 V, 3 A
9 V, 2 A
12 V, 2 A
Max. Output power per channel: 24 W
USB-C output
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 5 A
28 V, 5 A (EPR)
Max. Output power per channel: 140 W
The USB-C connection supports a maximum output power of 140 W. The device to be charged must support the PD 3.1 protocol and have a USB cable that fulfils the EPR specifications.
SDC and SDC Lite output
SDC: 9 to 27 V, max. current output: 10 A, max. output power: 240 W
SDC Lite: 9 to 27 V, max. current output: 10 A, max. output power: 240 W
Both the SDC and SDC Lite connections support a wide range of accessories.
Input data
AC input
DYM1000L: 100 to 120 V AC, 1200 W (charging), 1440 W (bypass mode)
DYM1000H: 220 to 240 V AC, 1200 W (charging), 2200 W (bypass mode)
SDC and SDC Lite input
SDC: 32 to 58.4 V DC, max. 400 W, 8 A
SDC Lite: 32 to 58.4 V DC, max. 400 W, 8 A
Both the SDC and SDC Lite connections support a wide range of accessories.
Battery
Cell chemistry
LFP (lithium iron phosphate)
Cycle life
Maintains a capacity of over 80 % after 3000 cycles.
Measured at a room temperature of 25 °C, when charging in standard charging mode with 600 W at an output power of 1000 W.
Operating temperature
Power supply temperature
-10 °C to 45 °C
Charging temperature
0 °C to 45 °C
Storage temperature
-10 °C to 45 °C
