Description
The heating case is designed for use in cold temperatures to protect lithium polymer and lithium-ion batteries from premature ageing and undervoltage. The battery heater heats the batteries to achieve full capacity or full performance. Inside the case is a powder-coated aluminium plate that is non-conductive and largely scratch-resistant. The edge insulation has also been optimally bonded.

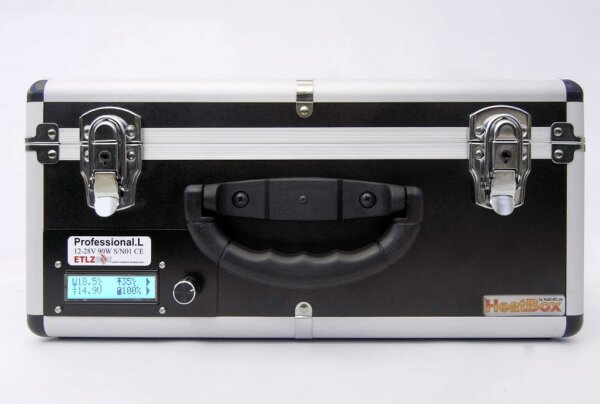

The LiPo heating case Pro has a two-line display and gives you the option of changing or displaying a variety of functions, values and parameters.
Displays:
- SET and ACTUAL temperature
- Current voltage
Changeable parameters:
- Target temperature
- Hysteresis
- Heating duration
- Heating pause
- Sound on/off
- Brightness of the display
The system is equipped with a control and has an additional temperature fuse, which has the task of preventing the system from heating up above 65°C if the control fails.
Important:
This is a heating case, not a safety case! It is only approved for use with 12 to 28V stabilised DC voltage. Therefore, only high-quality power supply units with stabilised output voltage or 12V batteries may be used. The power source must be equipped with appropriate overload protection. Connection cables are not included in the scope of delivery.
Technical data
| Input voltage | 12-28 Volt DC stabilised |
| Power output | 90 watts |
| Temperature | 20 to 50°C adjustable |
| External dimensions | 415 x 345 x 195 mm |
| Internal dimensions | 355 x 255 x 80 mm |
| Weight | 3.2 kg |
| Safety protection | Reverse polarity protection Thermal fuse EU Declaration of Conformity CE |
