Description
Powerful lighting for versatile applications

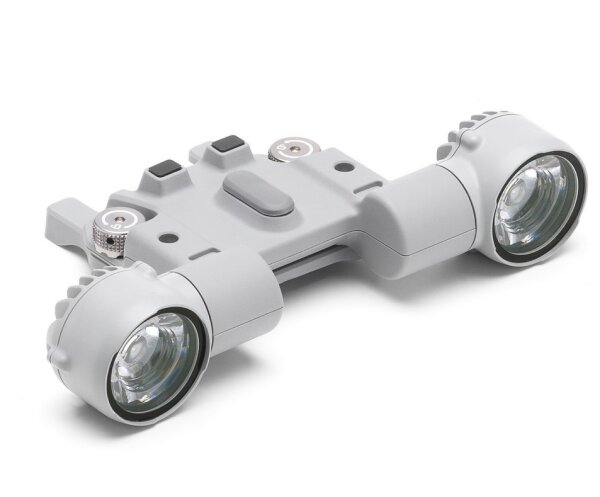

The DJI AL1 spotlight is the ideal addition for DJI Matrice 4 series drones and offers powerful lighting for demanding scenarios. With a range of up to 100 meters, it ensures clear illumination even in poor lighting conditions.
Key features:
Two lighting modes - always-on for continuous light and strobe for intermittent signals.
Intelligent gimbal synchronization - The spotlight follows the movements of the camera and ensures that the illuminated area matches the camera view.
Wide angle mode - Extends the illuminated area for a better view in large areas.
Flexible use - Can be used alone or in combination with speakers.
Easy installation & safety instructions:
- Secure hold due to tightened screws - regular re-tightening with the supplied hex key recommended.
- Activation via the corresponding app, including firmware updates for optimum performance.
- The spotlight can affect the drone performance - therefore careful flying recommended.
- Avoid direct light exposure to the eyes.
- The housing may become hot after prolonged operation - beware of burns.
Compatibility:
DJI Matrice 4 series
Whether for inspection flights, search and rescue missions or night operations - the DJI AL1 spotlight offers the perfect lighting for every challenge.
Scope of delivery
- 1x headlight
- 2x spare screw
- 1x hexagon wrench
Technical data
Weight: 99 g (including holder）
Approx. 91 g (without holder)
95 × 164 × 30 mm (L × W × H, including holder）
79 × 164 × 28 mm (L × W × H, without bracket)
Max. Power: 32 W
Illuminance: 4.3 ± 0.2 lx at 100 meters, 17 ± 0.2 lx at 50 meters
Effective lighting angle: 23° (10 % relative illuminance)
Effective illumination area: 1,300 square meters at 100 meters (10 % relative illuminance, normal mode)
2,200 square meters at 100 meters (10 % relative illuminance, wide field of view mode)
Modes: Always-on and strobe
Mechanical range gimbal (tilt): -135° to +45°
Controllable gimbal range (tilt): -90° to +35°
Max. Control speed (tilt): 120°/s
Accuracy of gimbal alignment: ±0.1°
Operating temperature: -20 °C to +50 °C
Mounting method: Hand-tightened quick-release screws
